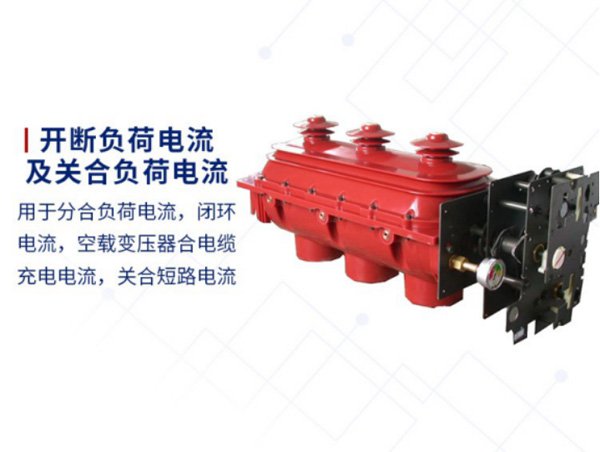

FLN36-12/24/35 type sulfur hexafluoride load switch
FLN36-12/24/35 type sulfur hexafluoride load switch is contain load switch、earthing switch、isolating switch integrated multifunctional medium voltage switchgear。
  1.Losd switch and combined electrical apparatus ,consist of each insulating body switch body、Respective spring operating mechanism、Fuse contact base and Fuse action striking trip system 。
2.consist upper and lower body of epoxy resin injection，constitute inflatable lumen，Communal rotating motion of moving contact ,Sequential completion"Unification、Separate、Earthing"Three working states，base on hand spring energy storage operating mechanism can increase electric close&open the switch，Realize remote control operation，For user selection。
3.Position Indicator directly moving contact drive shaft connection，Instructions Working position of moving contact absolutely reliable。
4.Posterior part of body with safety diaphragm，while Inside the arc extinguishing chambermay be some kind of acciden  causing excessive pressure，Overpressure gas can break through the diaphragm and be released，So as to ensure personal safety。
5.Load switch and earthing switch、earthing switch and front door , reliable mechanical interlock both。
